From Balmaseda et al.,2013

Fig. 14

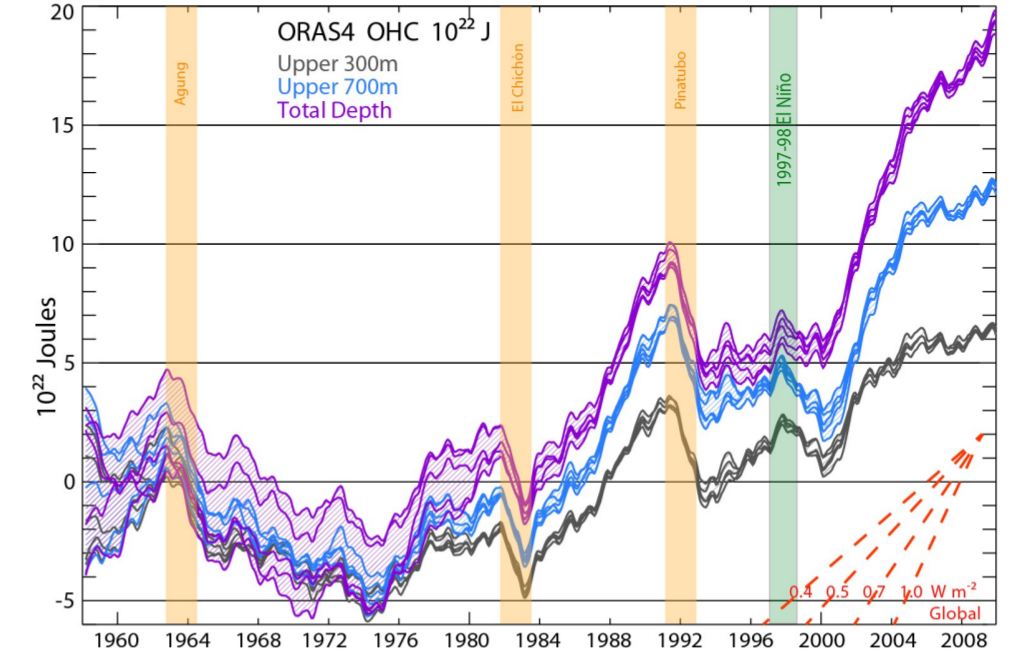

Ocean heat content vs time

This graph shows the ocean heat content in upto different depths as a function of time.

I wanted to know how much went in different layers since 2000. So I differenced the graph, et viola (a large violin...)

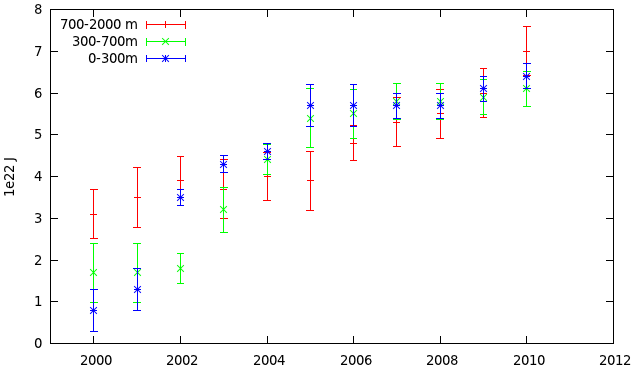

Ocean heat content of different layers vs time

to get the heat into different layers. Looks like 0-300,300-700m warmed from 2000-2006 and 2006-2010 sees 700-2000m warming.

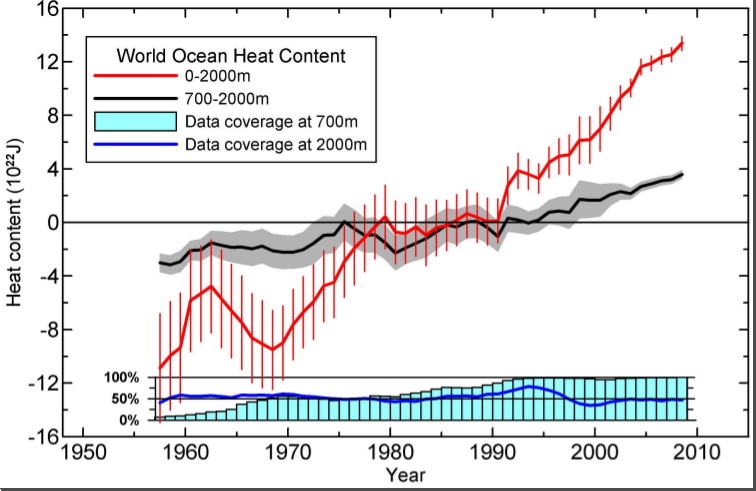

For comparison, I include Levitus(2012) OHC

Now I wonder whats going on below 2000m ...

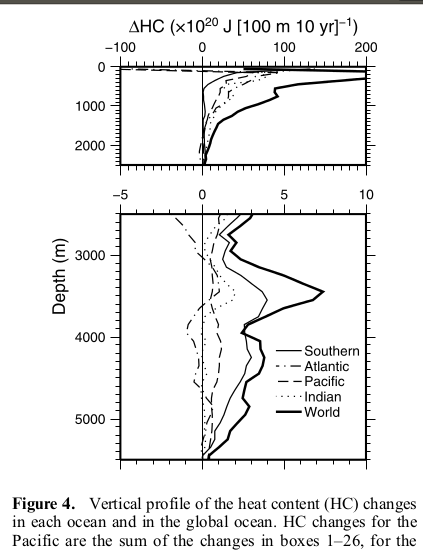

So on to deeper(sorry) matters. Kouketsu(doi:10.1029/2010JC006464, 2011) give 1e22J/yr from 1990s to 2000s for full ocean, 0.8e21J/yr below 3000m, 0.4e21J/yr below 4000m .

ocean heat content and depth

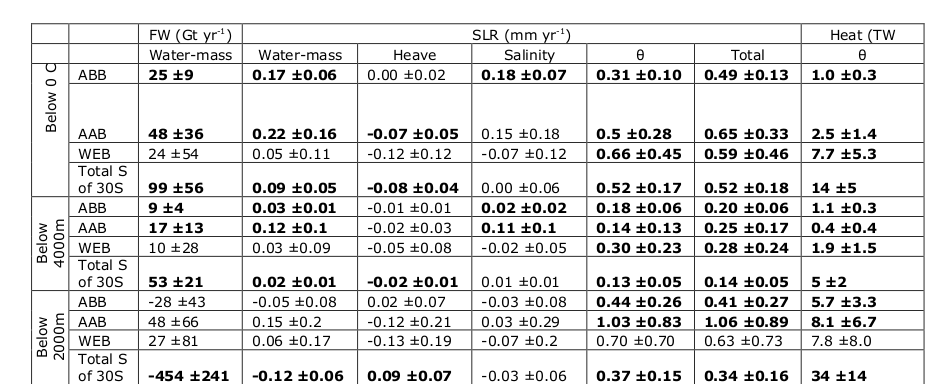

Purkey(doi: 10.1175/JCLI-D-12-00834.1, 2013) say 14% (33Tw+/-14Tw) south of 30S latitude below 2000 m.

Antarctic Bottom Water Heat increase Deep ocean is a player, moves faster than we suppose, the Kraken stirs.
