Climate Change Feedback Loop and Tipping-Point Network
Updated “simplified” feedback loop and tipping-point network diagram. It starts at the top of the world… and works its way down to Middle Earth, where our girth is actually slowing the planet’s rotation. Welcome to the present.

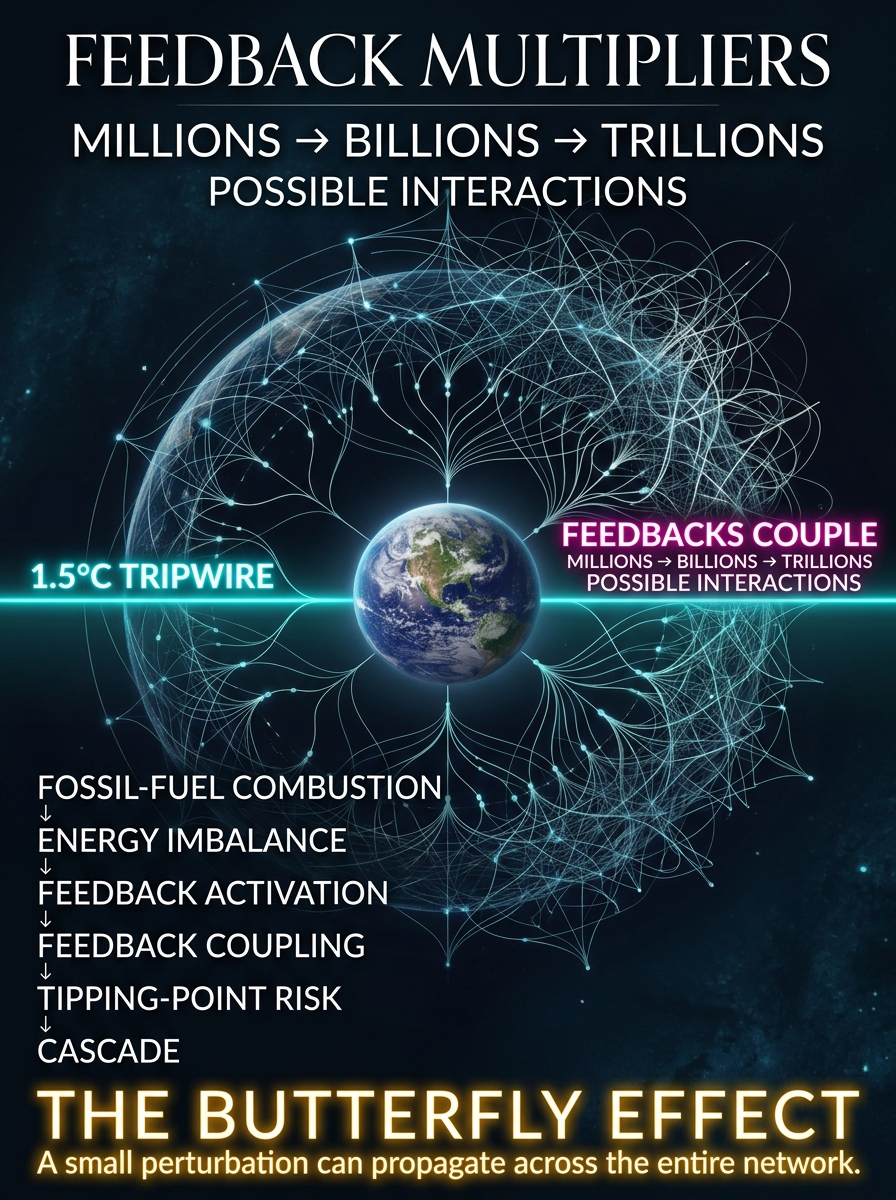

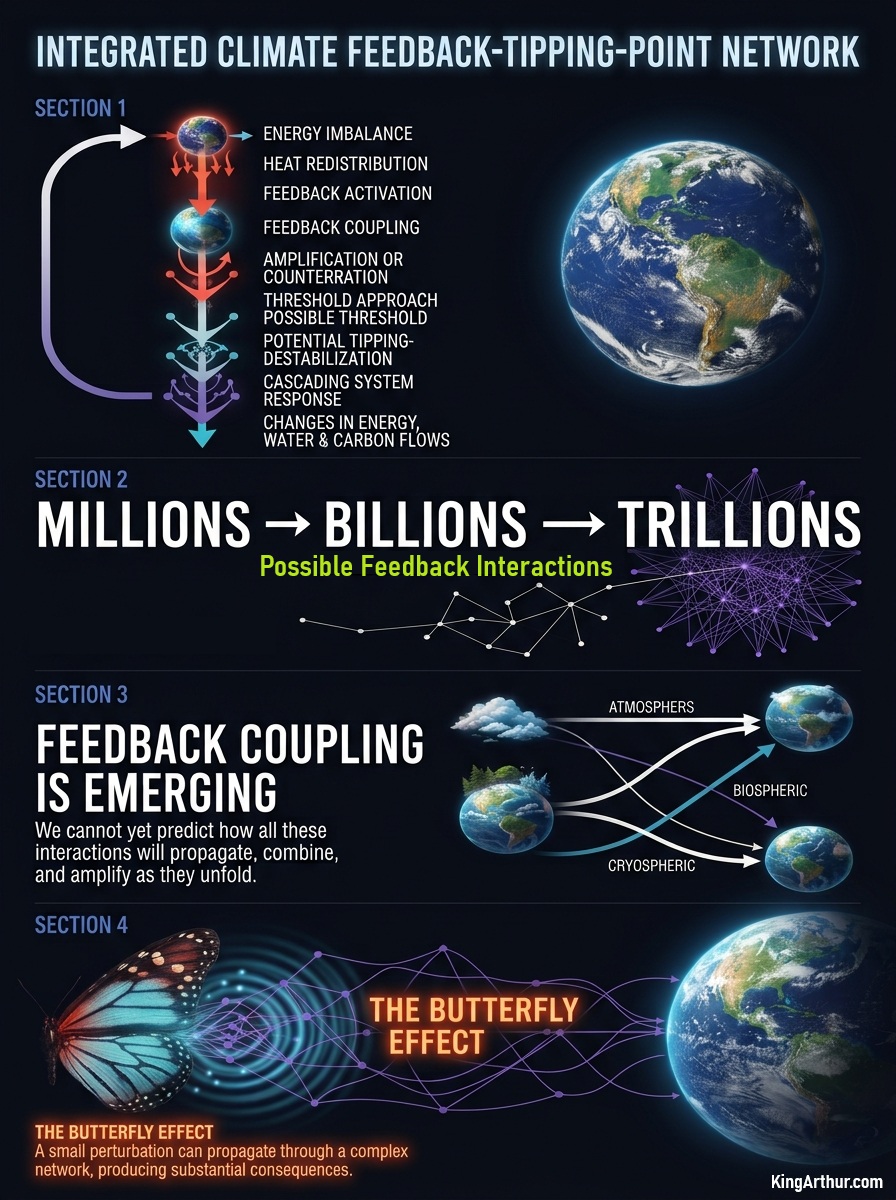

Feedback Loops → Tipping Points → Feedback Loop and Tipping-Point Network → Acceleration → Domino Effect
Feedback loops amplify climate change and can push interconnected Earth systems past critical tipping points. As tipping points are crossed, they can trigger additional feedback loops and destabilize other climate systems. This cascading "Domino Effect" compresses timescales, accelerates change, and increases the risk of rapid, nonlinear climate transformations.

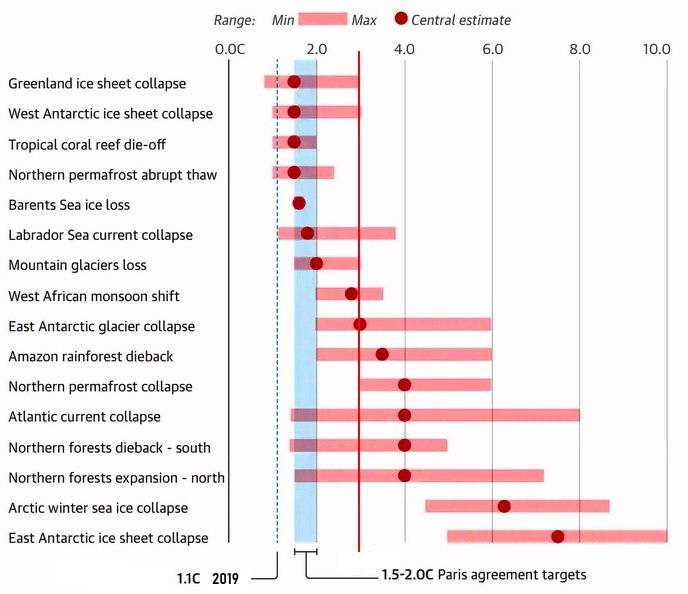

The 1.5°C threshold identified in the Paris Agreement—and the roughly 2°C level generally regarded as an even more dangerous boundary—is not important because the difference between 1.4°C and 1.5°C is somehow magical. These numbers matter because increasing global temperatures raise the probability of triggering major climate tipping points.
And once tipping points begin to activate, the question of whether warming ultimately reaches 2°C, 3°C, or even 4–7°C becomes much less relevant for two fundamental reasons:
First, tipping points can initiate self-reinforcing feedbacks that continue driving change even after the original forcing changes.
Second, the impacts do not necessarily increase gradually with temperature. They can accelerate, compound, and cascade as interconnected systems begin to destabilize.
In other words, 1.5°C is not a destination. It is not merely a warning sign or an alarm. It is a tripwire.

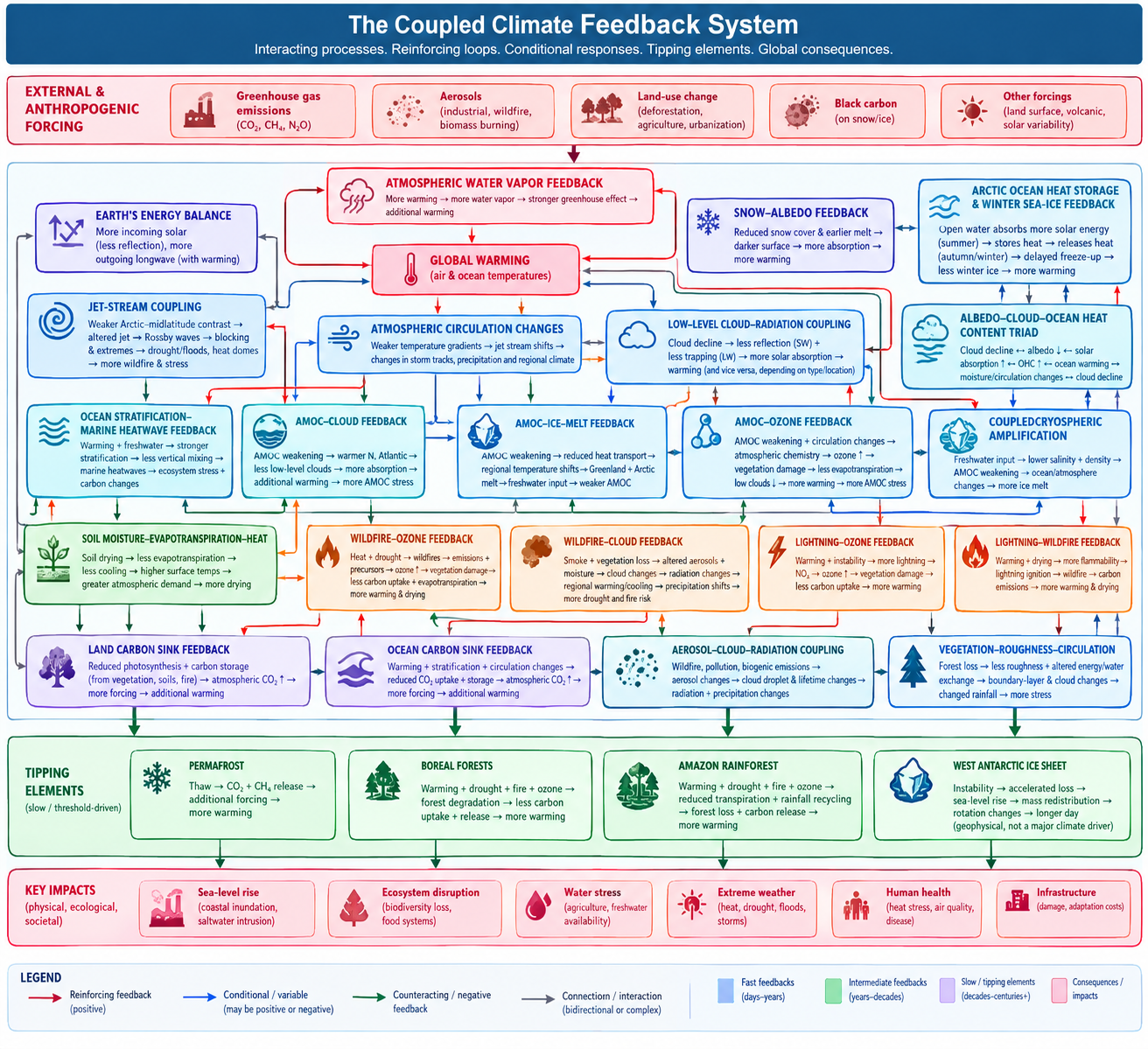

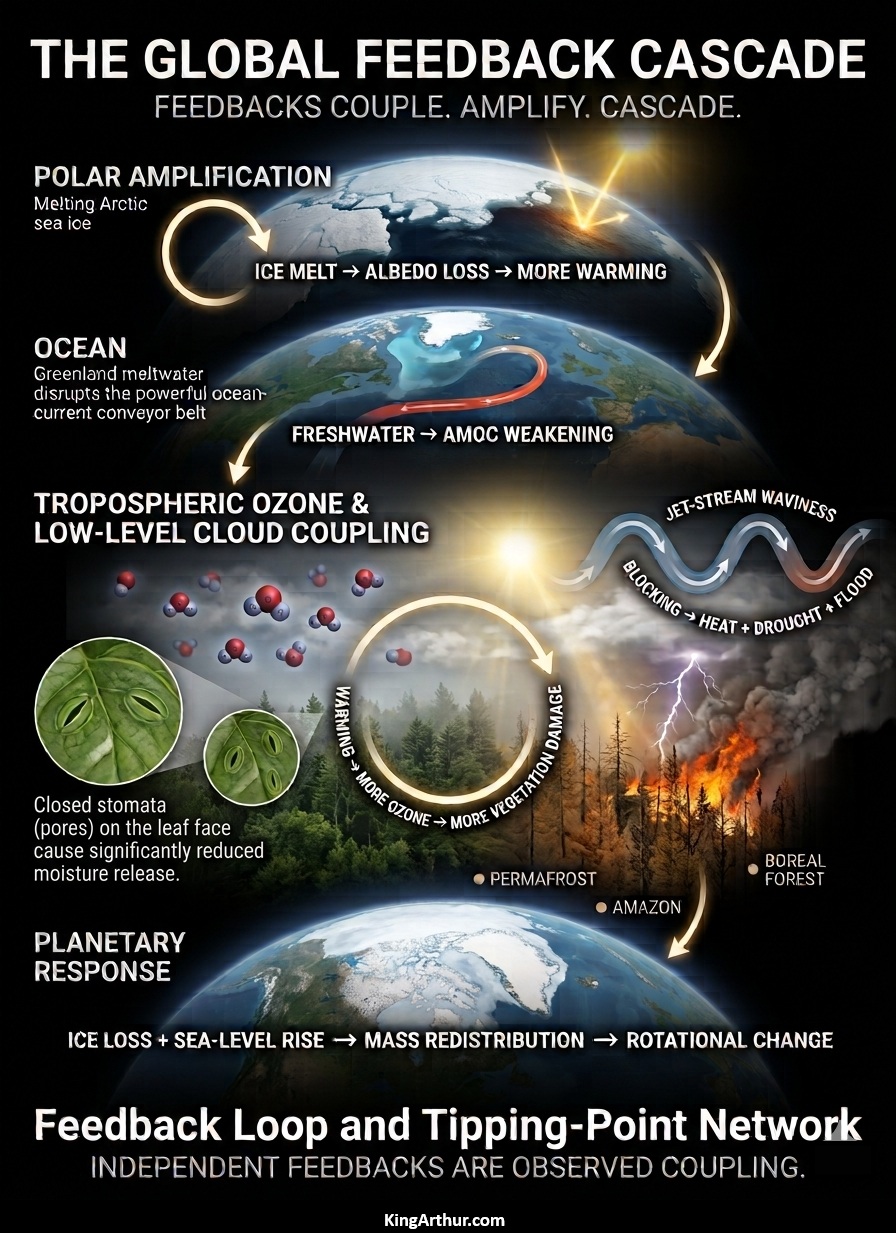

A Simplified Network Diagram
Polar amplification → weakened equator-to-pole temperature gradients → reduced thermal contrast → atmospheric circulation changes → accelerated Arctic and Greenland ice melt → ICE–ALBEDO FEEDBACK: ice loss → darker surface → greater solar absorption → more warming → more ice loss ↺ → MELT–ELEVATION FEEDBACK: ice loss → lower ice-sheet elevation → warmer air → faster surface melt → further elevation loss ↺ → LAPSE-RATE FEEDBACK: Arctic warming → weaker vertical temperature gradient → reduced atmospheric cooling efficiency → additional near-surface warming → more ice melt ↺ → COUPLED CRYOSPHERIC AMPLIFICATION → freshwater input into the North Atlantic → reduced salinity + density → AMOC weakening →
AMOC–CLOUD FEEDBACK: AMOC weakening → North Atlantic temperature + circulation changes → altered moisture transport → declining low-level clouds → reduced reflection of incoming solar radiation → increased solar absorption → additional ocean warming → further AMOC stress ↺ →
AMOC–OZONE FEEDBACK: AMOC weakening + altered circulation → changes in atmospheric chemistry + precursor transport → tropospheric ozone → vegetation damage → reduced stomatal conductance + photosynthesis → reduced evapotranspiration → lower atmospheric moisture → declining low-level clouds → increased solar absorption → additional warming → further AMOC stress ↺ →
AMOC–ICE-MELT FEEDBACK: AMOC weakening → altered North Atlantic heat transport → regional ocean-atmosphere temperature redistribution → Greenland + Arctic ice melt → freshwater discharge → reduced salinity + density → weaker deep-water formation → further AMOC weakening ↺ →
GLACIAL-RETREAT FEEDBACK: warming → glacier + ice-sheet retreat → reduced reflectivity + lower ice-sheet elevation → greater solar absorption + enhanced surface melt → additional warming + ice loss ↺ → SEA-LEVEL RISE → coastal inundation + saltwater intrusion + altered ocean circulation → additional cryospheric + ecosystem stress →
WILDFIRE–OZONE FEEDBACK: warming + drought → increased wildfire risk → vegetation loss + smoke + atmospheric emissions → increased ozone precursors → tropospheric ozone formation → vegetation damage → reduced carbon uptake + evapotranspiration → greater warming + drying → increased wildfire risk ↺ →
WILDFIRE–CLOUD FEEDBACK: wildfire smoke + vegetation loss → altered aerosol loading + moisture flux → changes in cloud formation + persistence → altered shortwave radiation → regional warming or cooling → precipitation disruption → greater drought and fire risk ↺ →
LIGHTNING–OZONE FEEDBACK: warming + convective instability → increased lightning → lightning-generated NOₓ → increased tropospheric ozone formation → vegetation damage → reduced carbon uptake → additional warming → increased atmospheric instability + lightning potential ↺ →
LIGHTNING–WILDFIRE FEEDBACK: warming + drying → increased fuel flammability → lightning ignition → wildfire → vegetation loss + carbon emissions → additional warming + drying → greater wildfire risk ↺ →
LOW-LEVEL CLOUD–OZONE COUPLING: tropospheric ozone → vegetation damage → reduced stomatal conductance → reduced transpiration → reduced atmospheric moisture → declining low-level clouds → increased shortwave solar absorption → warming → increased ozone formation/persistence under favorable conditions → additional vegetation damage ↺ →
JET-STREAM COUPLING: weakened Arctic-to-midlatitude thermal contrast → altered polar jet → amplified Rossby waves → interaction with subtropical jet + storm tracks → greater jet-stream waviness + slower progression → persistent blocking + omega blocks + meridional flow → stalled atmospheric rivers + prolonged heat domes + drought–flood swings → hydroclimatic whiplash → agriculture + infrastructure + ecosystems + public health stress → increased wildfire + vegetation stress ↺ →
PERMAFROST TIPPING ELEMENT: Arctic warming → permafrost thaw → CO₂ + CH₄ release → additional greenhouse forcing → Arctic warming ↺ →
BOREAL FOREST TIPPING ELEMENT: warming + drought + wildfire + ozone damage → forest degradation → reduced carbon uptake + carbon release → additional warming ↺ →
AMAZON RAINFOREST TIPPING ELEMENT: warming + drought + fire + ozone damage → reduced stomatal function + evapotranspiration → reduced rainfall recycling + declining low-level clouds → greater drought → forest loss + carbon release → additional warming ↺ →
WEST ANTARCTIC ICE-SHEET TIPPING ELEMENT: ice instability → accelerated ice loss → sea-level rise → additional cryospheric stress → global land-ice loss + groundwater redistribution → planetary mass redistribution → altered moment of inertia → rotational dynamics → slight rotational slowing → changes in length of day.
Read the full hunting manual: This is Tipping Point Season
